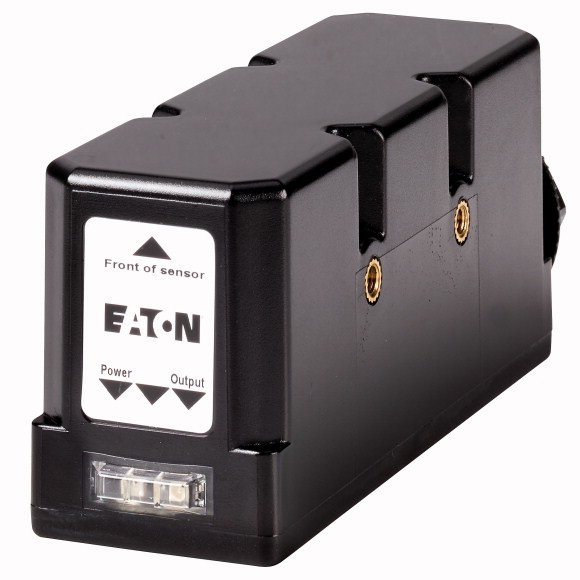

| Sensors (EG000026) / Light scanner with background masking (EC002719) |
| Electric engineering, automation, process control engineering / Binary sensor technology, safety-related sensor technology / Optoelectronic sensor / Light scanner w. background masking (ecl@ss8.1-27-27-09-04 [AKP253010]) |
| Adjustment range |
|
mm |
0 - 1000 |
| Operating distance |
|
mm |
0 - 0 |
| Triangulation |
|
|
Background fade-out |
| Pre failure notice |
|
|
No |
| With time function |
|
|
No |
| Rated switching distance |
|
mm |
1000 |
| Max. switching distance |
|
mm |
1300 |
| Max. output current |
|
mA |
100 |
| Reflector included |
|
|
No |
| Analogue output 0 V ... 10 V |
|
|
No |
| Analogue output 0 mA ... 20 mA |
|
|
No |
| Analogue output 4 mA ... 20 mA |
|
|
No |
| Analogue output -10 V ... +10 V |
|
|
No |
| With other analog output |
|
|
No |
| Setting procedure |
|
|
- |
| With communication interface analog |
|
|
No |
| With communication interface AS-Interface |
|
|
No |
| With communication interface CANOpen |
|
|
No |
| With communication interface DeviceNet |
|
|
No |
| With communication interface Ethernet |
|
|
No |
| With communication interface INTERBUS |
|
|
No |
| With communication interface PROFIBUS |
|
|
No |
| With communication interface RS-232 |
|
|
No |
| With communication interface RS-422 |
|
|
No |
| With communication interface RS-485 |
|
|
No |
| With communication interface SSD |
|
|
No |
| With communication interface SSI |
|
|
No |
| Number of semiconductor outputs with signalling function |
|
|
2 |
| Number of contact energized outputs with signalling function |
|
|
0 |
| Number of protected semiconductor outputs |
|
|
0 |
| Number of protected contact energized outputs |
|
|
0 |
| Type of interface for safety communication |
|
|
- |
| Type of electric connection |
|
|
- |
| Type of switching output |
|
|
PNP/NPN |
| Type of switch function |
|
|
- |
| Operation agent-safety class |
|
|
Safety class 2 |
| Explosion safety category for gas |
|
|
None |
| Explosion safety category for dust |
|
|
None |
| Construction type housing |
|
|
Cuboid |
| Width sensor |
|
mm |
43 |
| Diameter sensor |
|
mm |
0 |
| Height of sensor |
|
mm |
59 |
| Length of sensor |
|
mm |
166 |
| Switch function |
|
|
Light switching |
| Material of optical surface |
|
|
Plastic |
| Material housing |
|
|
Plastic |
| Max. output current at protected output |
|
mA |
0 |
| Min. reflector distance |
|
mm |
0 |
| Ambient temperature |
|
°C |
-35 - 55 |
| Time of reaction |
|
ms |
15 |
| Transmission range of the safety field |
|
m |
0 |
| Switching frequency |
|
Hz |
0 |
| Type of safety acc. IEC 61496-1 |
|
|
- |
| Switching voltage of OSSD at state "high" |
|
V |
30 |
| Rated control supply voltage Us at AC 50HZ |
|
V |
0 - 0 |
| Rated control supply voltage Us at AC 60HZ |
|
V |
0 - 0 |
| Rated control supply voltage Us at DC |
|
V |
18 - 30 |
| Voltage type |
|
|
DC |
| With monitoring function downstream switching devices |
|
|
No |
| Laser protection class |
|
|
None |
| Wavelength of the sensor |
|
nm |
0 |
| Type of light |
|
|
Infrared light |
| Light dot |
|
mm? |
0 |
| AWG-number |
|
|
0 |
| Material of cable sheath |
|
|
- |
| With restart blockage |
|
|
No |
| Suitable for safety functions |
|
|
No |
| Degree of protection (IP) |
|
|
IP67 |
