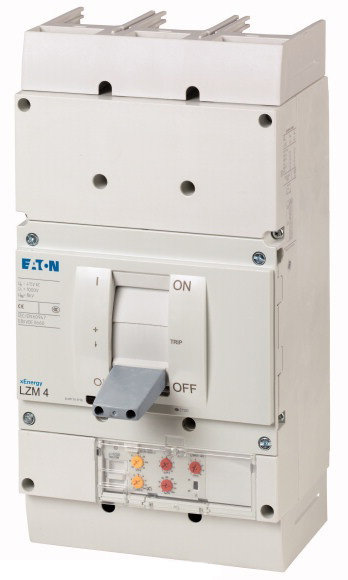

LZMN4-AE1250-I Автоматический выключатель 1250А, 3 полюса, откл.способность 36кА, диапазон уставки 630...1600А

Артикул: 111980
Наличие уточняйте у менеджеров
162 245,82

Категории: Автоматические выключатели Eaton LZM

Обзор

Технические характеристики

Артикул 111980
Габариты, ШхВхГ, мм 401x210x207
Объем, дм3 17.431
Масса, кг 19.995

Технические характеристики согласно ETIM 6.0

Low-voltage industrial components (EG000017) / Power circuit-breaker for trafo/generator/installation prot. (EC000228)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Circuit breaker for power transformer, generator and system protection (ecl@ss8.1-27-37-04-09 [AJZ716010])
Rated permanent current Iu A 1250
Rated voltage V 690 - 690
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz kA 50
Overload release current setting A 630 - 1250
Adjustment range short-term delayed short-circuit release A 0 - 0
Adjustment range undelayed short-circuit release A 2500 - 15000
Integrated earth fault protection No
Type of electrical connection of main circuit Screw connection
Device construction Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting No
DIN rail (top hat rail) mounting optional No
Number of auxiliary contacts as normally closed contact 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as change-over contact 0
Switched-off indicator available No
With under voltage release No
Number of poles 3
Position of connection for main current circuit Front side
Type of control element Rocker lever
Complete device with protection unit Yes
Motor drive integrated No
Motor drive optional Yes
Degree of protection (IP) IP20
