Технические характеристики

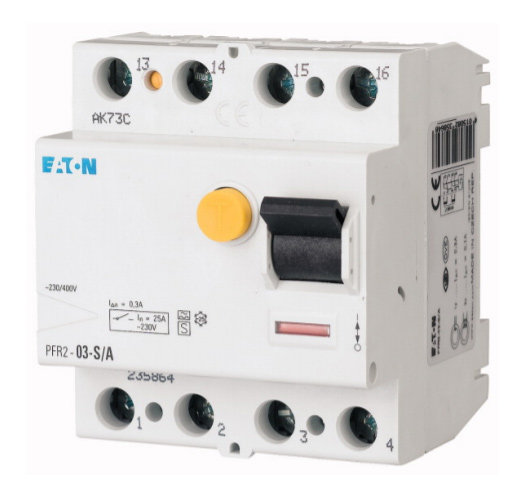

| Артикул | 235864 |
| Объем, дм3 | 0,398 |
| Масса, кг | 0,32 |
Bauartnachweis nach IEC/EN 61439
| Технические характеристики для подтверждения типа конструкции | |||
| Номинальный ток для указания потери мощности | In | A | 25 |
| Потеря мощности на полюс, в зависимости от тока | sub>vid | W | 0 |
| Способность отдавать потери мощности | sub>ve | W | 0 |
| Мин. рабочая температура | °C | -25 | |
| Макс. рабочая температура | °C | 40 |
Технические характеристики согласно ETIM 6.0
| Circuit breakers and fuses (EG000020) / Residual current circuit breaker (RCCB) (EC000003) | |||
| Electric engineering, automation, process control engineering / Electrical installation, device / Residual current protection system / Residual current circuit breaker (RCCB) (ecl@ss8.1-27-14-22-01 [AAB906011]) | |||
| Number of poles | 0 | ||
| Nominal rated voltage | V | 400 | |
| Nominal rated current | A | 25 | |
| Rated fault current | A | 0.3 | |
| Mounting method | DIN rail | ||
| Leakage current type | A | ||
| Selective protection | Yes | ||
| Short-circuit breaking capacity (Icw) | kA | 10 | |
| Surge current capacity | kA | 5 | |
| Frequency | 50 Hz | ||
| Additional equipment possible | Yes | ||
| Degree of protection (IP) | IP40 | ||
| Construction size (in accordance with DIN 43880) | 1 | ||
| Width in number of modular spacings | 4 | ||
| Built-in depth | mm | 69.5 | |
| Short-time delayed tripping | No | ||
